DS系列 - 拨码开关 - 东莞市汉博电子科技有限公司

轻触开关

拨码开关

< >

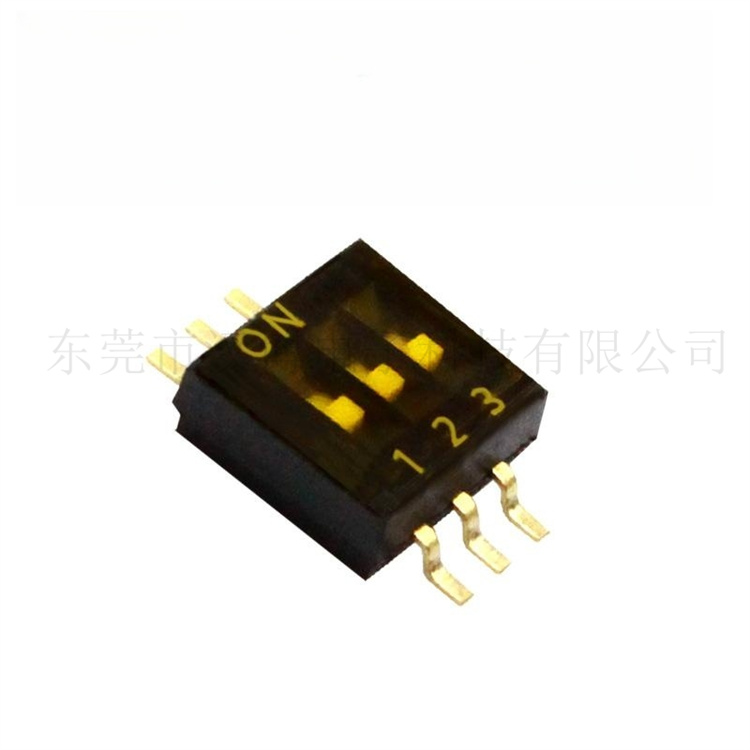

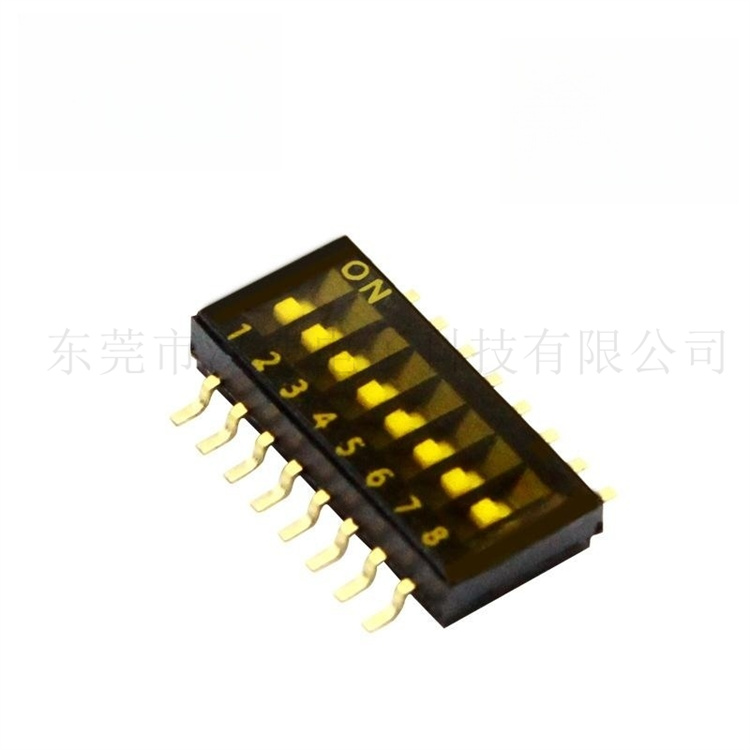

DS系(xi)列

品牌：汉博（HANBO）	产品型号：DS-XXXX
工作温度：-25°~±85°C	最小包装：2000PCS/圆盘

应用(yong)领(ling)域:数(shu)码产(chan)品(pin)、安防、电(dian)脑、通讯产(chan)品(pin)、家(jia)用(yong)电(dian)器、智能家(jia)居(ju)、智能穿(chuan)戴产(chan)品(pin)等。

声明：有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据，只作于参考，如需详细测试报告，请联系业务人员!

请联系相关业务索取CAD/3D文件

特性
产品文档

产品介绍

类型

产品分类

连接器

产品系统

拨码开关

开关种类

J脚拨(bo)码开关

类型

平推型

位数

1-10位

间距(mm)

1.27mm

方向

贴片（SMT）

颜色

黑色

电气

电流(最大)

0.5A

电压(最大)

30V

接触电阻

≤100mΩMAX

绝缘电阻

AC 500V 1Minute

额定负荷

DC 24V 25mA

工作温度范围

-25ºC~+85ºC

机械

操作方式

平推方式

安装方式

表面(mian)贴装(zhuang)

使用寿命

3000

材料

电镀类型

镀金

电镀厚度

Gold flash

树脂材质

LCP

阻燃性等级

UL94 V-0

包装

包装方式

卷装

联系电话

15377753702
